Boat, Electric Bicycle, e-scooter,textile machinery and medical equipment etc
Brushless DC motor
High efficiency, Small and light with higher power, Low noise
48V 1000W brushless geared hub motor for electric bicycle
30000 Piece/Pieces per Year 48V 1000W brushless geared hub motor for electric bicycle
Packaging & Delivery
1.Package size:484mmX384mmX274mm(four pieces per carton).
2.Package material:carton box with foam.
Shipped in 15 days after payment

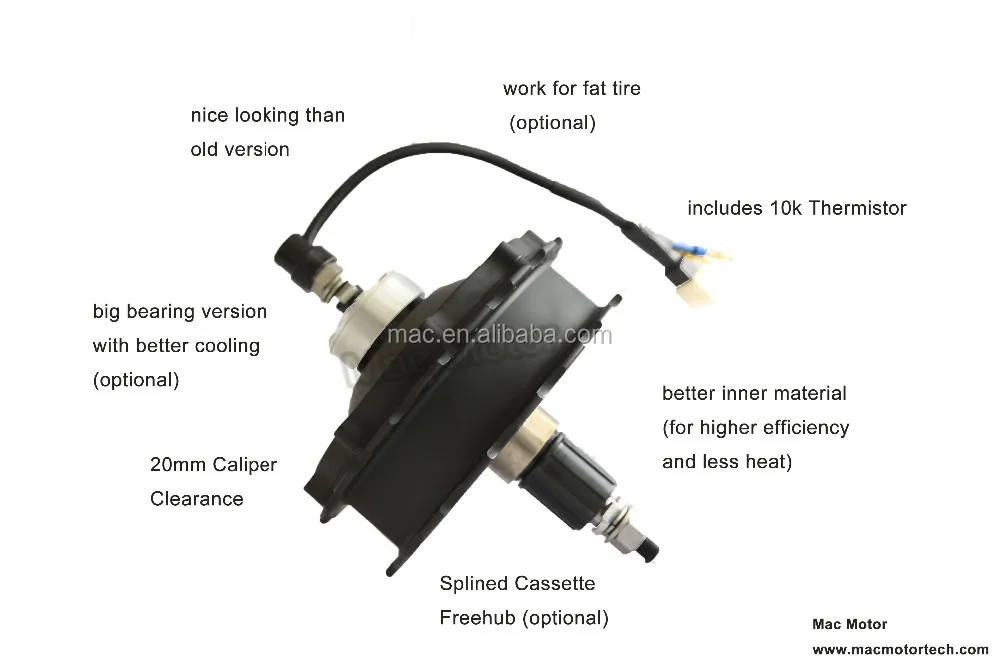

Here is brief introduction to our Mac geared hub motor:

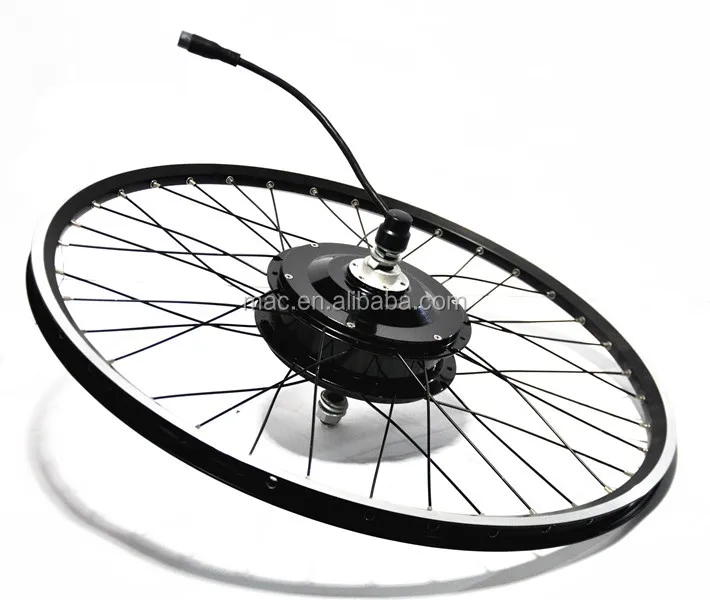

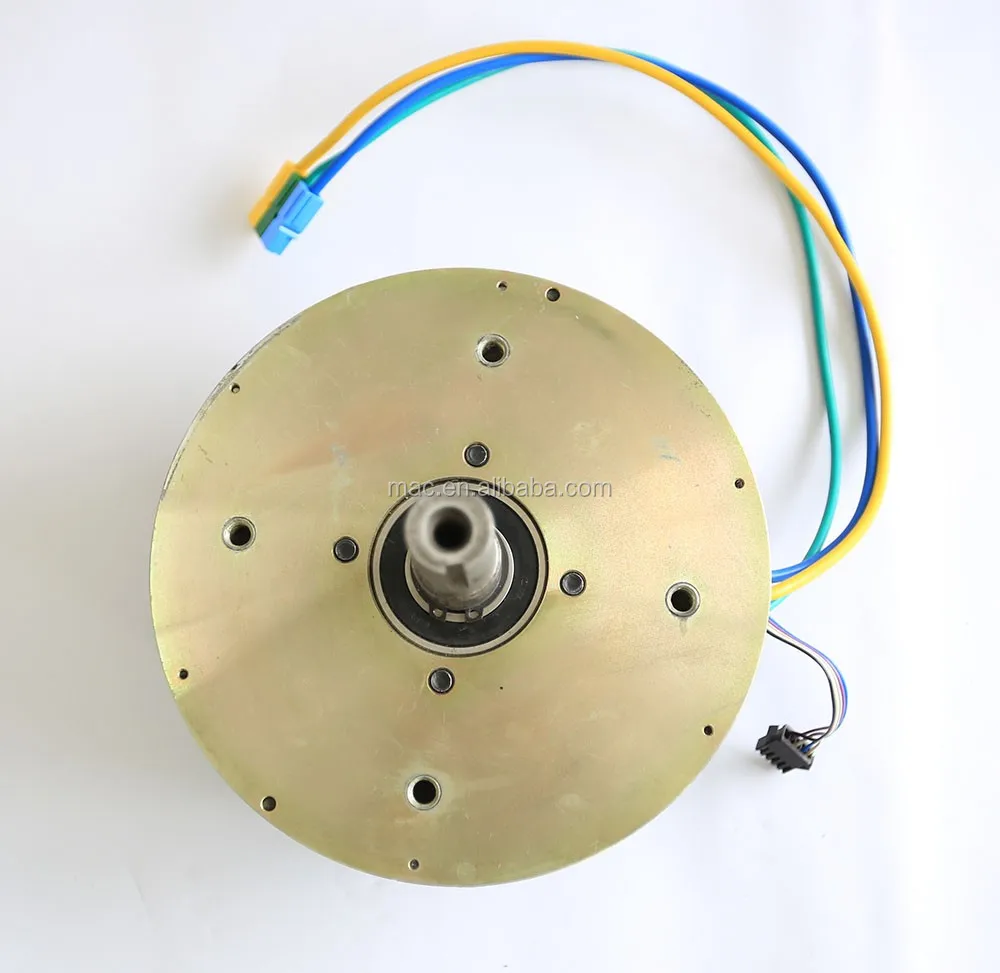

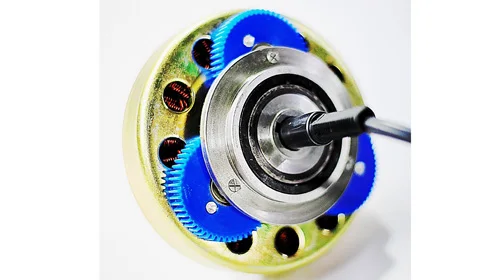

The Mac Motor is a High Power, High Torque, Geared Hub Motor intended for Spoked Bicycle wheels from 16” to700C. Rated Output power is typically between 500 to 1000W depending upon the motor winding selected and the operating voltage. An internal 5:1 planetary gear with clutch is implemented. New stronger Composite Gears are now standard on the 500W motors to ensure a long trouble free life. The gear reduction allows the motor to spin at a higher and more efficient rpm greatly improving the starting torque and hill climbing ability when compared with comparable Direct-Drive motors, whilst also being smaller and lighter than a comparable DD motor. The clutch offers minimal drag when not under power. Unlike the majority of geared motors on the market, the Mac 500W is built for the high power demands of the US market, not the highly restricted EU market. The slower wound versions could still be used and stay within the EU speed limit, for those requiring more hill climbing ability than the typical 250W motors can offer.
The Mac motor uses a 32 magnet, 16 pair pole motor unlike the vast majority of Geared motors on the Market which use an 8 pair pole motor. This further improves torque, but does mean that the electrical rpm or commutation frequency is higher than typical geared motors and much higher than Direct-Drive motors, so some care with controller selection is required. The available space for the disk is a little limited at 15mm between the side casing and the inner face of the disk, so some care when selecting a suitable caliper is required or some spacing of the disk away from the side cover and possibly modification of the caliper mounting may be required for some models of disk brake caliper. The Mac 500W rear motor allows both disk brake and 7 speed freewheel to be used on the standard 135mm dropout, which many of the small 250W geared motors cannot achieve. The front 500W Mac motor is now available with disc brake and is compatible with standard 100mm fork dropout.
6 turn high speed motor - 400rpm loaded at 36V, 520rpm loaded at 48V

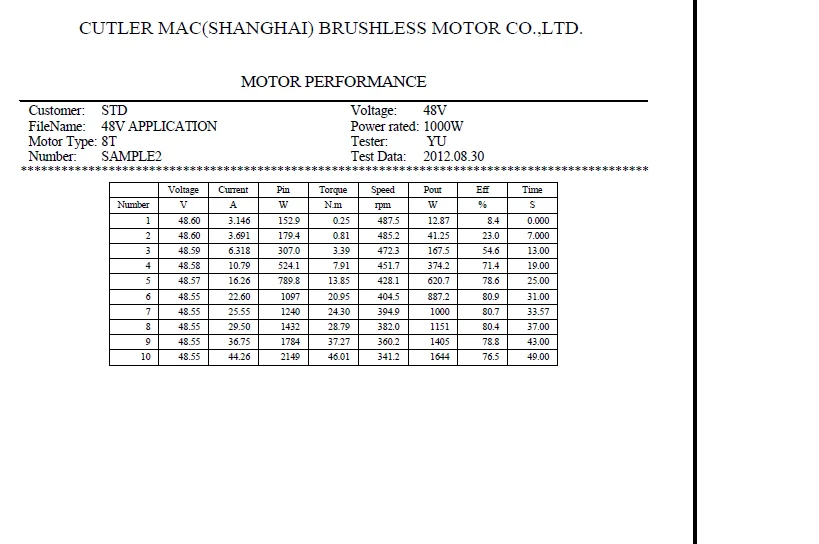

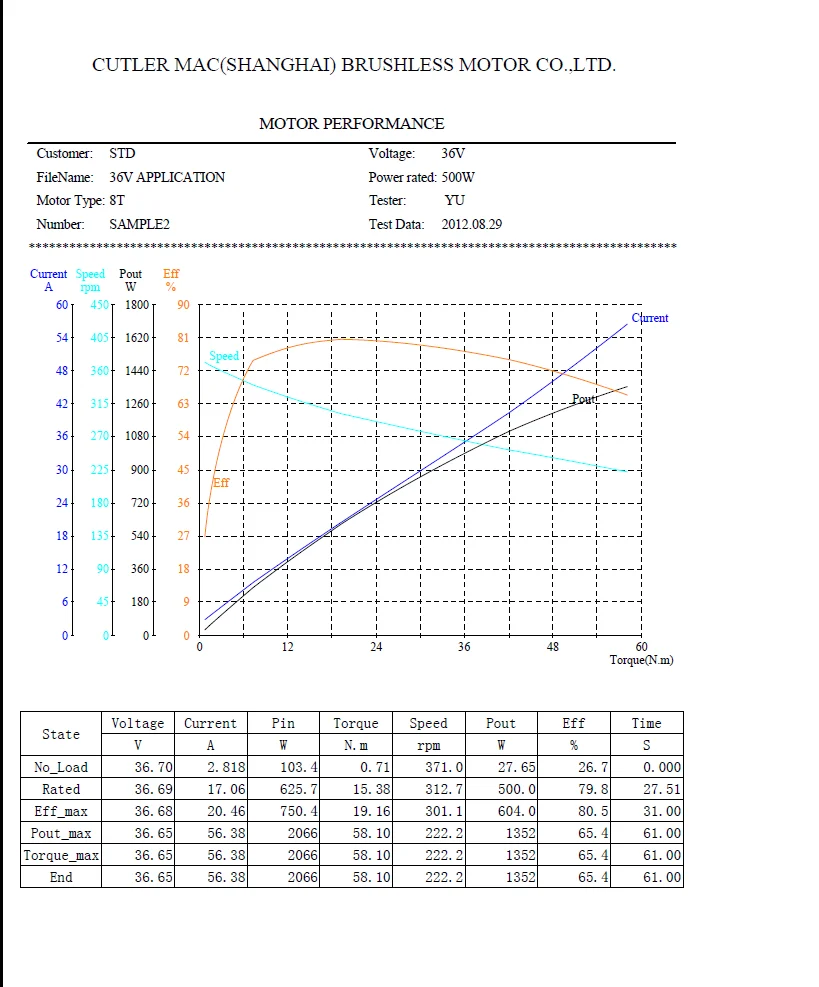

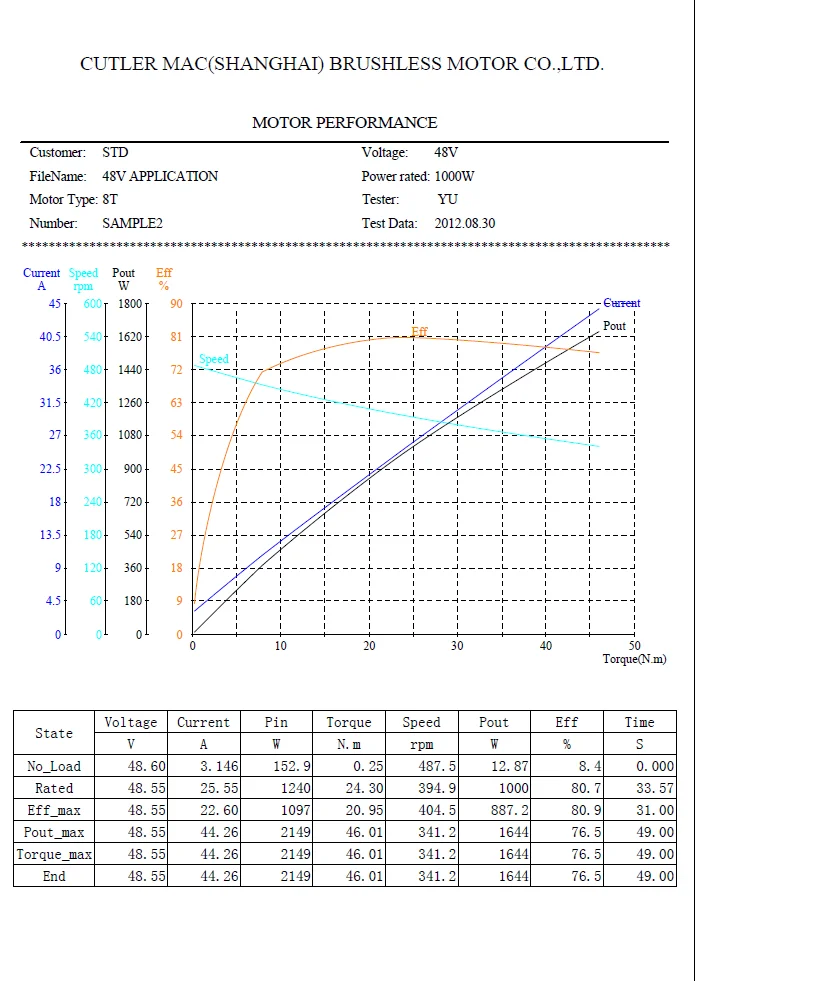

8 turn standard motor - 320rpm loaded at 36V, 400rpm loaded at 48V

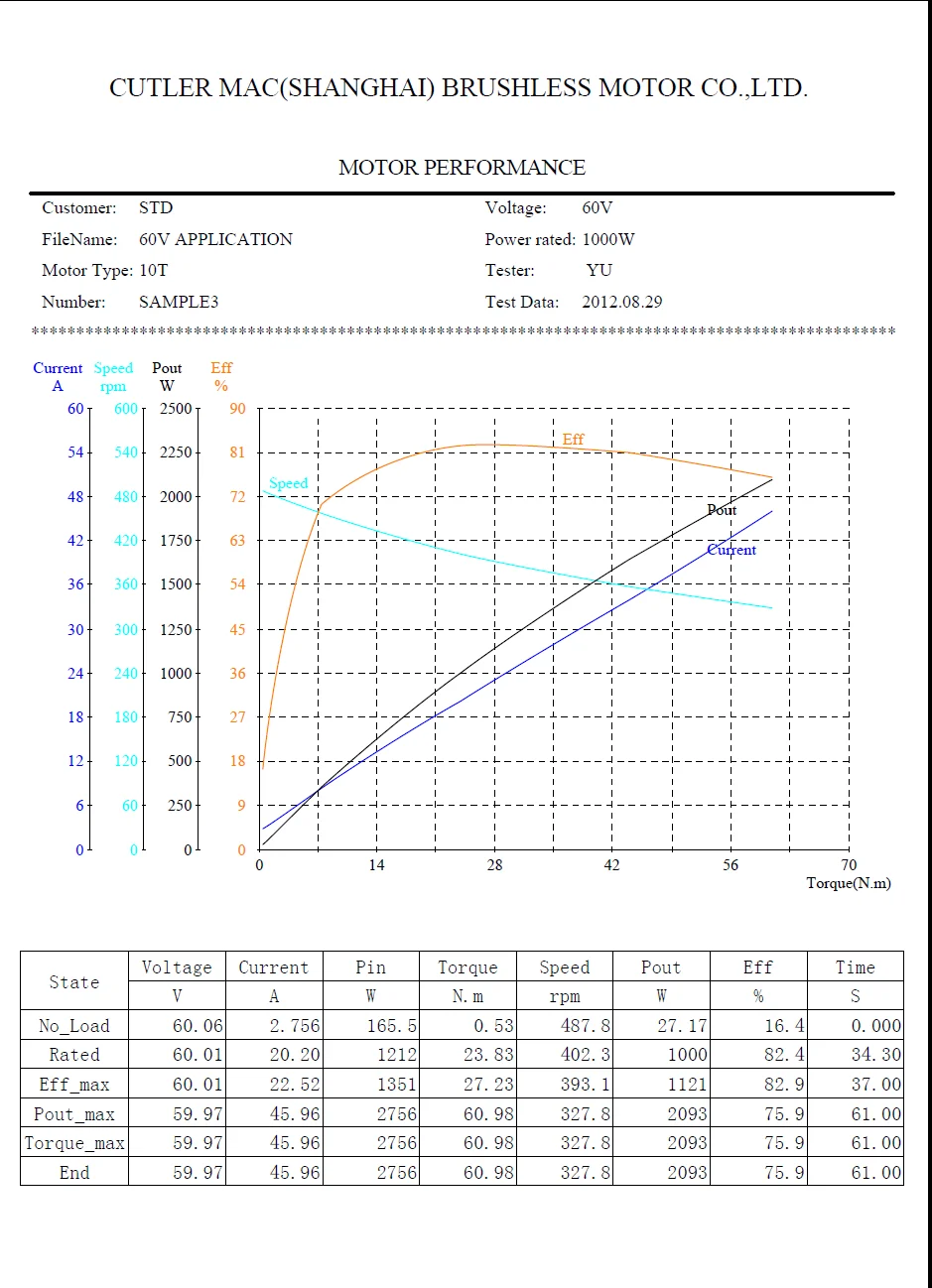

10 turn torque motor - 255rpm loaded at 36V, 320rpm loaded at 48V
12 turn low speed extra torque motor - 200rpm loaded at 36V, 250rpm loaded at 48V

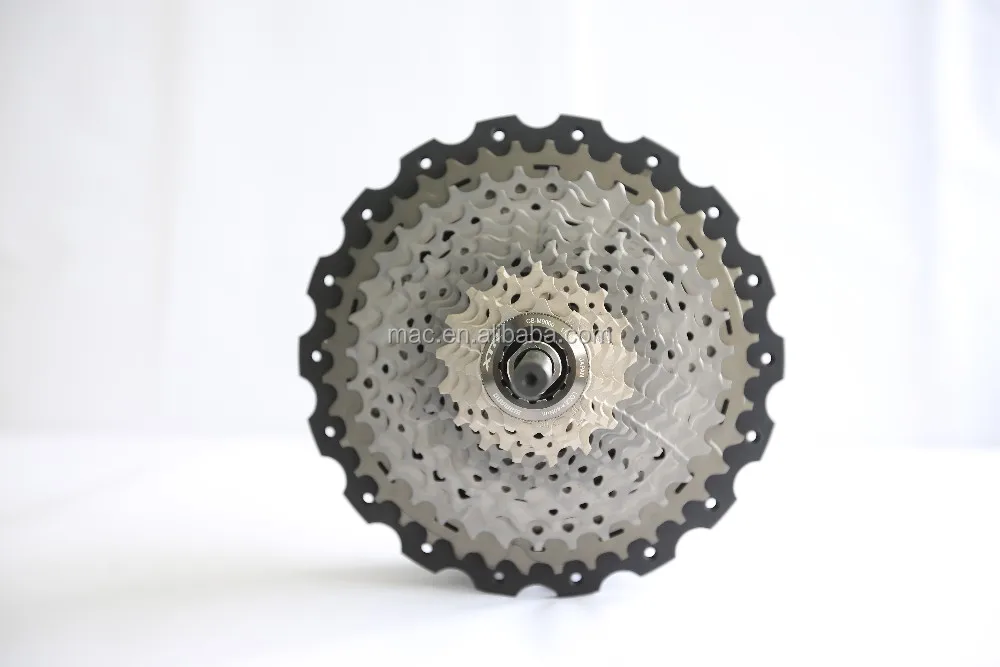

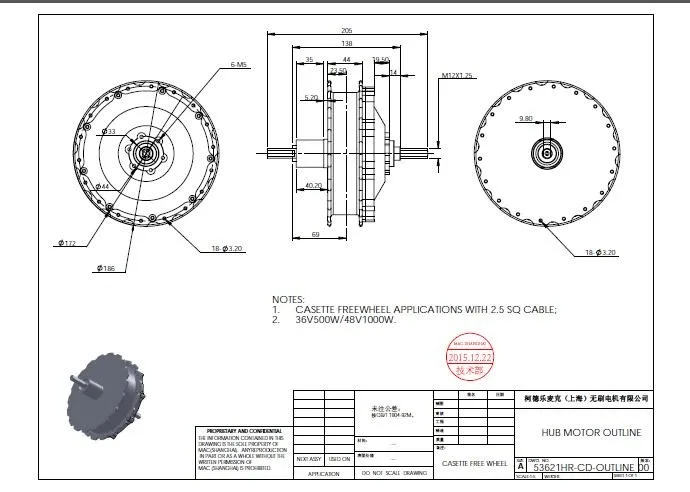

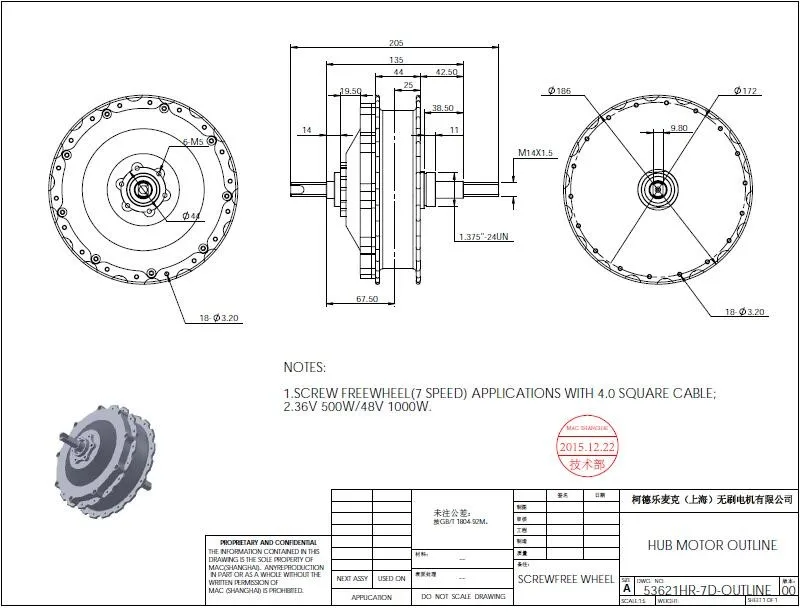

Accepts disk brake and 7 speed freewheel with standard 135mm rear dropout.
As a guideline you can expect approximately the following real world speeds for the above windings on 12S LiFePO4 battery pack (approximately 38V under load) in a 26" rim on the flat, no pedaling with a rider plus bike weight of approximately 130kg total (286pounds):
6T - 45kph (36v), 65kph (48v)
8T – 39kph (36v) , 50kph (48v)
10T – 32kph (36v) , 40kph (48v)
12T – 25kph (36v) , 32kph (48v)

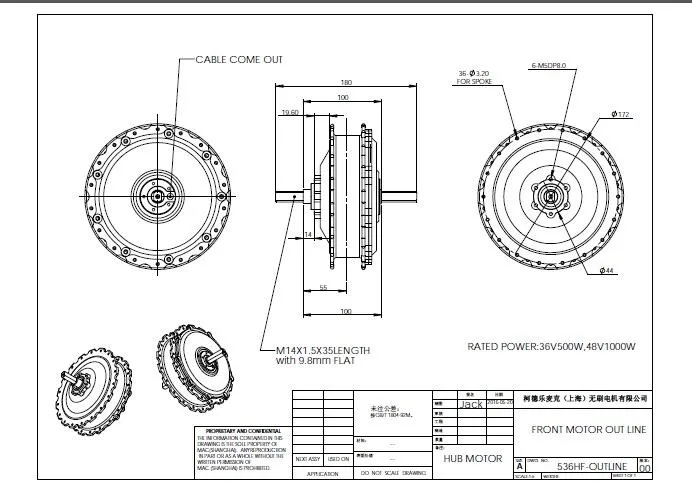

BCD for spokes - 172mm
Mac Motor is a manufacturer and developer of electric motor systems located in Shanghai, China.
We supply brushless motor ,brush motor, related parts and control systems for a wide range of products requiring high torque and high efficiency, including: hub, chain or belt driven BLDC systems for E-Bike, E-Scooter and other LEVs, pumps, mowers, battery powered equipment, automotive, air moving, floor care and numerous other applications. We are committed to environmentally friendly, electric powered motor system solutions. 48V 1000W brushless geared hub motor for electric bicycle

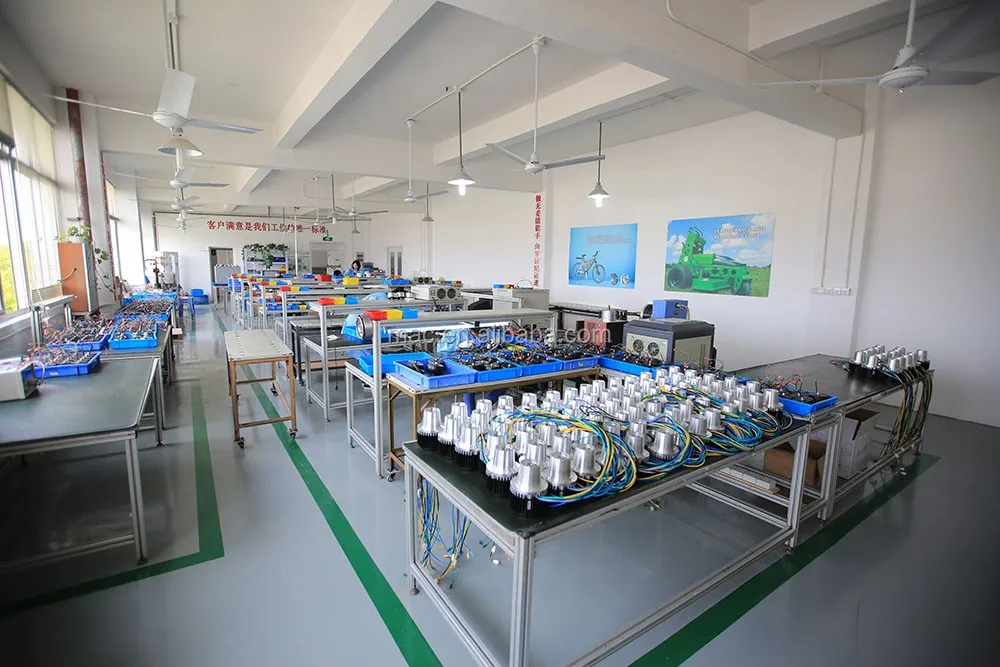

Our products range from 3.0W to 8000W rated output and are well accepted by customers in North America, Europe, Australia and Asia. Our extensive range of test equipment enables us to ensure our newly developed products meet the design criteria and that our production passes QC standards. We understand that the motor is only one part of the system and always strive to offer a complete solution. 48V 1000W brushless geared hub motor for electric bicycle
We are a customer focused organization with International Sales and Engineering team. We have the scale to provide high quality, high performance, cost effective and innovative products. We are a Foreign Invested Enterprise based in Pudong, Shanghai, only a short distance from Pudong International Airport, enabling easy factory visits and fast, reliable shipping. 48V 1000W brushless geared hub motor for electric bicycle
We are flexible and are happy to discuss your specific requirements. We appreciate your interest in our company and look forward to a bright and greener future together. Thank you!
1. OEM Manufacturing welcome: Product, Package... 2. Sample order 3. We will reply you for your inquiry in 24 hours. 4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
