Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Mac Motor
  • Model Number: 53621HR-7D, 1, 53621HR-7D
  • Usage: Electric Bicycle, hub mower, e-bikes
  • Certification: CE, EMC
  • Type: Gear Motor
  • Torque: High Torque
  • Construction: Permanent Magnet
  • Commutation: Brushless
  • Protect Feature: IP64,IP65
  • Speed(RPM): 300 rmp
  • Continuous Current(A): Current
  • Output Power: 250w-1000w
  • Voltage(V): 24/36/48V
  • Efficiency: 80%
  • Specification: electric wheel hub motor car
  • Rated Power: 250w-1000w
  • Rated Voltage: 24/36/48V
  • Rated speed: 300 rpm
  • Mower Type: Rotary
  • Turn: 6T 8T 10T 12T

Packaging & Delivery

Packaging Details 1.Package size:484mmX384mmX274mm(four pieces per carton).
2.Package material:carton box with foam.
Delivery Time Shipped in 30 days after payment
Product Description

Keyword: electrical bicycle motor for sale

We offer a range of Geared Hub Motors for both front and rear wheel installation, 6T, 12T dc brushless motor high torque

 The continuous rated output power and motor speed can be modified to customer requirements. Maximum continuous output power can be over 1000W which will produce around 50kph or 31mph max speed (higher speed can be achieved but the motor will get hot with prolonged use). Maximum input power is determined by the controller current limit, but can be 2000W. Our lower speed motors will have lower continuous output power, but can still deliver high peak power when required for strong acceleration and hill climbing ability. The motor uses a 5:1 Epicyclic reduction gear system with freewheel and has double the number of motor poles compared to typical geared hub motors on the market. Our design offers excellent motor efficiency and torque over a wide speed range that you cannot obtain with a typical Direct-Drive motor. The design also allows the motor to be smaller and lighter than a direct drive motor of equivalent power.

There are smaller and lighter Geared Hub motors on the market but they cannot come close to the power and torque that the Mac motor delivers. When not under power, the clutch in the gear system allows the rider to pedal the bicycle with little more effort than is required for a normal bicycle.

Another big advantage that our Rear Motor offers is the ability to fit both a standard Disk Brake and 7 speed freewheel within a standard rear dropout of 135mm. Very few geared or direct drive hub motors can offer this, even low powered 250W motors on the market, let alone a motor with the performance that the Mac motor offers. Many geared hub motors in the market will have an axle width of over 135mm and can only accept a 6 speed freewheel which makes it more difficult to integrate the motor into a standard bicycle and can be dangerous as alloy framed bicycles should not be bent to accommodate a larger than standards axle width. A 9 speed freewheel compatible rear motor is currently under development which can still fit within a typical bicycle frame.

Our Motors are built for performance and reliability using high quality parts and assembled with attention to detail. Our service, communication and products are amongst the best available.

Model
53621HR-CD
53621HR-7D
Rated Power(W)
250-800
250-1000
Rated Voltage(V)
24/36/48
24/36/48
Speed Range(rpm)
160-520
160-520
Efficiency(%)
>80
>80
Noise(dB)
<65
<65
Weight(kg)
4.2
4.2
Gear Ratio
5:1
5:1
Usage
Front Hub motor for electric bicycle,golf cart,ATV etc.
Rear Hub motor for electric bicycle,golf cart,ATV etc.
Features for electric wheel hub motor car

1. 6T, 8T, 10T, 12T high torque ebike motor or high speed ebike motor ; High Efficiency and High Power Handling. It takes a lot to get a Mac Motor Hot!.

2. Strong acceleration and excellent climbing ability.

3. Disc Brake compatible (front and rear, model specific), 7-speed freewheel, standard 135mm axle width for rear, standard 100mm axle width for front.

4. Epicyclic Reduction Gear and High Pole Count motor system means more torque and power in a compact and lightweight package.

5. Clutch ensures effortless riding experience.

6. Long Life, Maintenance Free, replacement parts readily available with low cost and user serviceable if required.

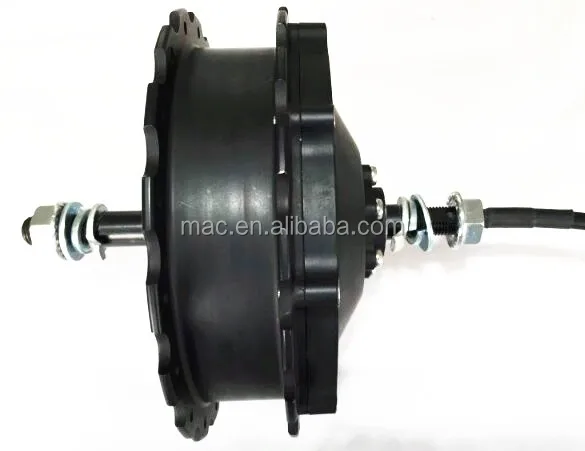

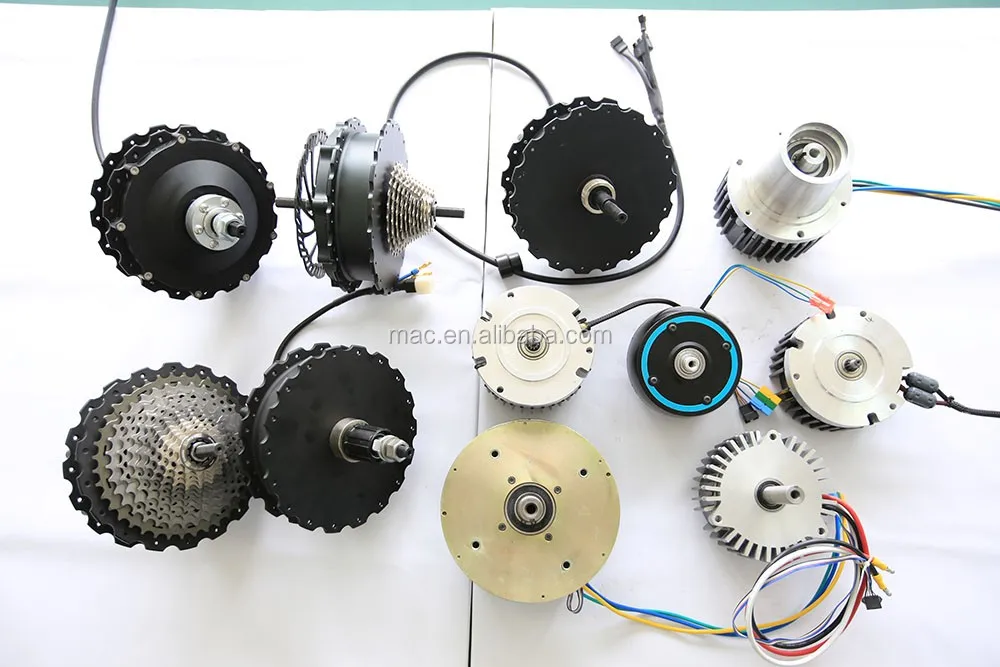

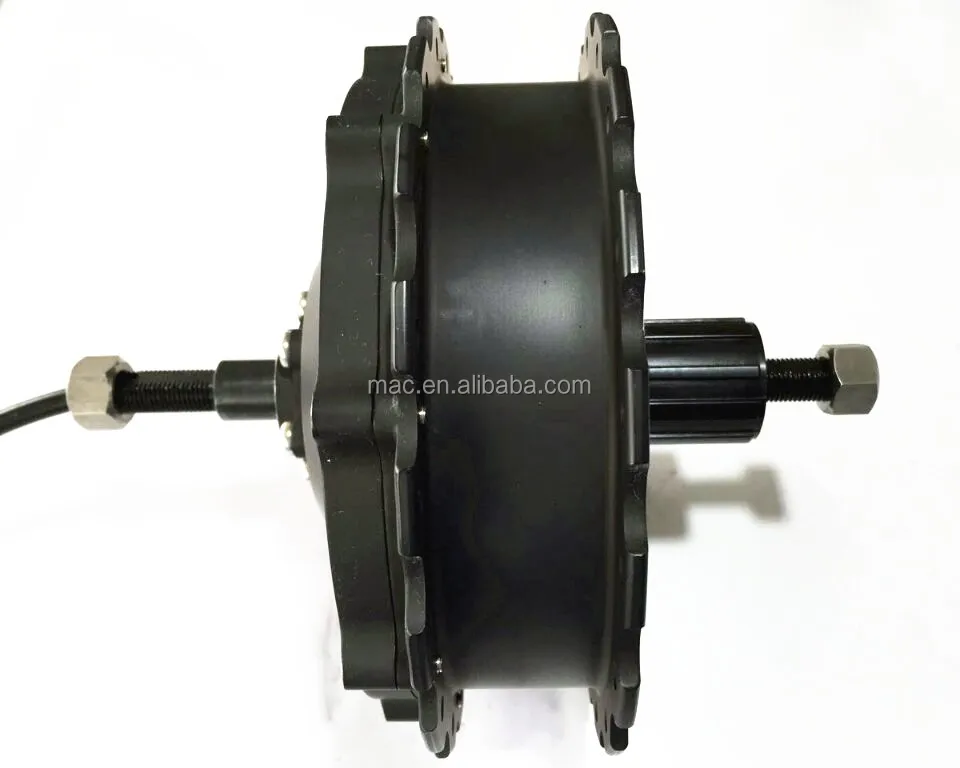

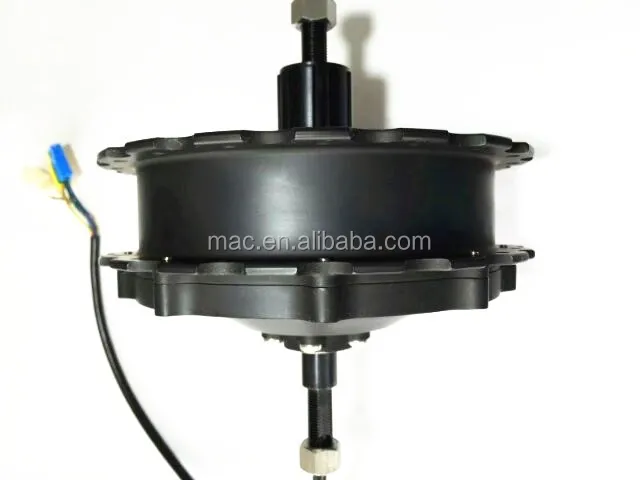

Products Show
QC Control

Wilding machine


QC machine

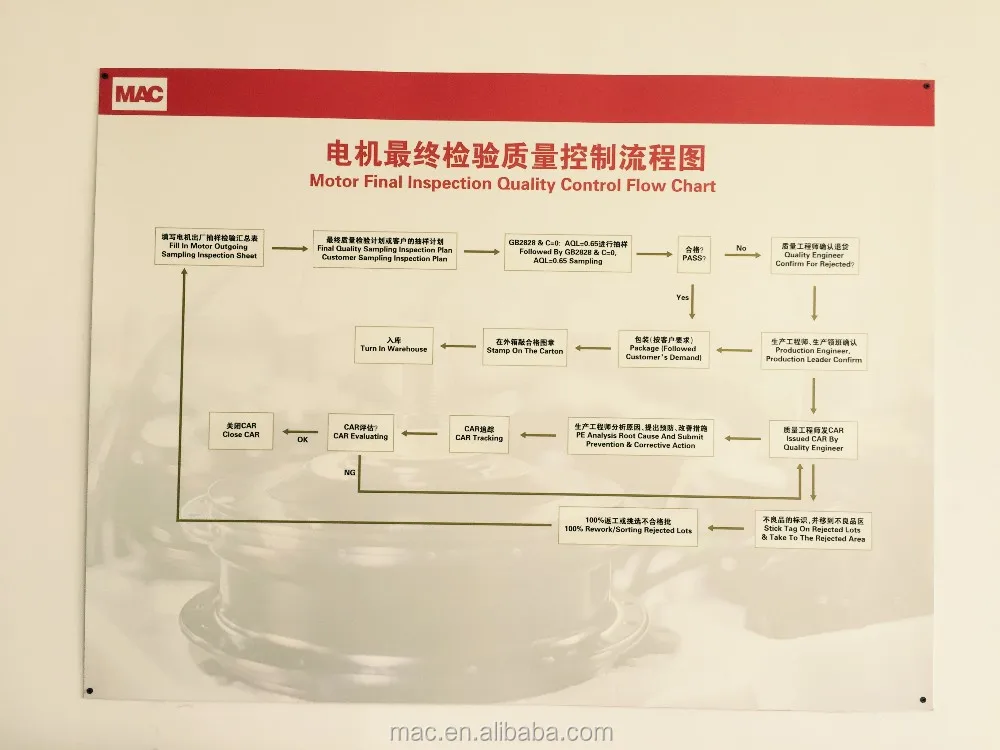

QC procedure


Our Company

Factory

Our Factory

Workshop

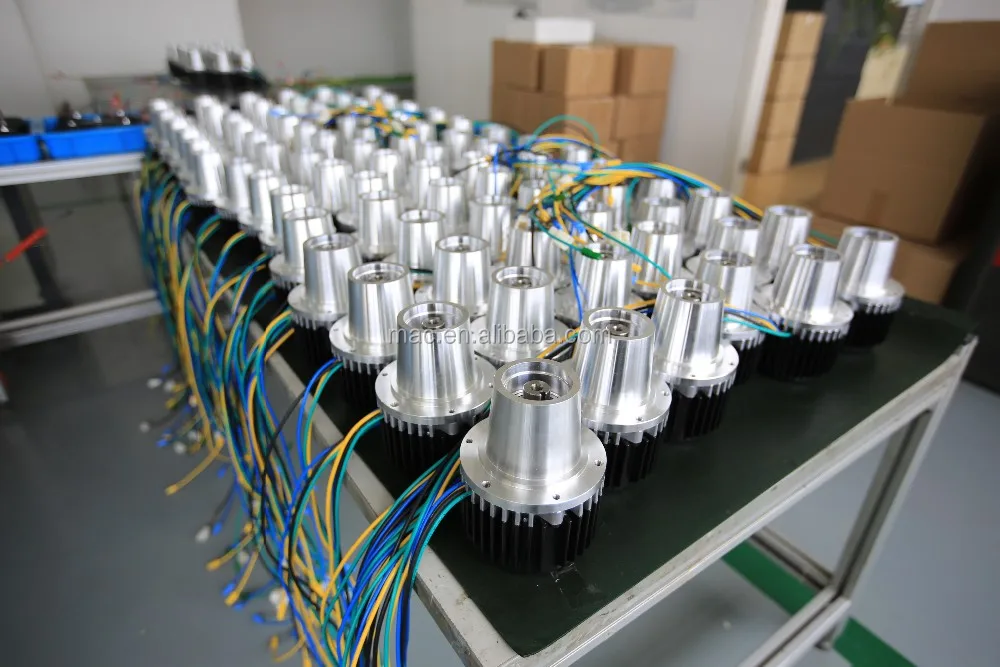

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details : carton, 2pcs/carton, 4pcs/carton
Delivery Details : 3-30 days after order

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
Our Certifications
Customer Photo


Customers

Interbike exhibition

Team& Party


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample to test, may charge small fee.

Q: What is your terms of payment ?

A: T/T in advance
B: Paypal for sample fee


If you have another question, pls feel free to contact us as below:
